PREMIUM HIGHWAY
What does this tire deliver to SUV and CUV owners?
GroundSpeed’s Voyager SV is a premium highway tire for SUVs and CUVs that provides All-Season traction and comfort in wet or dry conditions. This tire is highly efficient at highway speeds and is optimized with the following design elements:
FEATURES + BENEFITS
-
LARGE SHOULDER DESIGN
Purposefully designed larger shoulders give the precise contact patch needed for steady cornering and stability.
-
CENTER CONTROL RIB
The center rib with siping offers additional control during high-speed driving. More control is delivered overall.
-

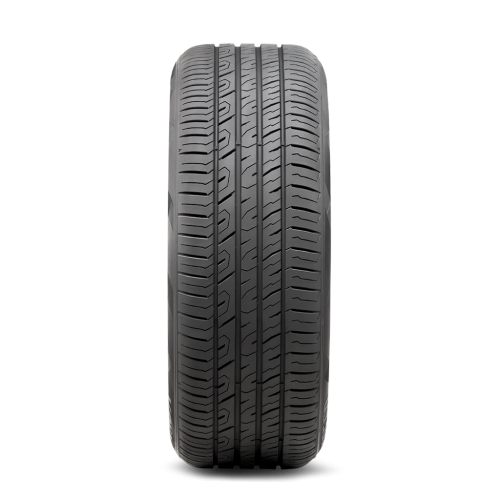

GRIP-OPTIMIZED TREAD
The vertical and horizontal tread grooves are made to deliver extra grip and control, enhancing braking performance.
-
WET-TRACTION GROOVES
Wide vertical grooves are engineered to evacuate water quickly for exceptional handling and cornering in wet conditions.
-
PERFORMANCE-RATED
With speed ratings up to T, H and V the Voyager SV is designed for today's SUVs and CUVs.
SIZES
18"
| ARTICLE | WHEEL DIAMETER | SIZE | LS | PLY RATING | RIM WIDTH | TREAD DEPTH 32nds | DIAMETER | MAX LOAD SINGLE/DUAL |
MAX PRESSURE | UTQG | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 122621 | 18 | 255/55ZR18 | 109W | 8.5-9.0-10.0 | 10 | 29.02 | 2271 / / | 49 | 500 A A | 33.31 | |
| 122560 | 18 | 235/60R18 | 107V | 6.5-7.5-8.5 | 10 | 29.09 | 2149 / / | 49 | 500 A A | 31.85 | |
| 122607 | 18 | P255/65R18 | 111H | 6.5-7.5-8.5 | 10 | 31.06 | 2403 / / | 44 | 500 A A | 35.81 | |
| 122614 | 18 | 275/65R18 | 116H | 7.5-8.0-9.5 | 10 | 32.09 | 2756 / / | 44 | 500 A A | 40.95 | |
| 122591 | 18 | 235/65R18 | 110 H | 6.5-7.0-8.5 | 10 | 30.04 | 2337 / / | 49 | 500 A A | 32.68 |
19"
| ARTICLE | WHEEL DIAMETER | SIZE | LS | PLY RATING | RIM WIDTH | TREAD DEPTH 32nds | DIAMETER | MAX LOAD SINGLE/DUAL |
MAX PRESSURE | UTQG | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 122584 | 19 | 235/55R19 | 105 V | 6.5-7.5-8.5 | 10 | 29.17 | 2039 / / | 49 | 500 A A | 30.63 | |
| 122645 | 19 | 245/55ZR19 | 103W | 6.5-7.5-8.5 | 10 | 29.65 | 1929 / / | 44 | 500 A A | 31.62 |
20"
| ARTICLE | WHEEL DIAMETER | SIZE | LS | PLY RATING | RIM WIDTH | TREAD DEPTH 32nds | DIAMETER | MAX LOAD SINGLE/DUAL |
MAX PRESSURE | UTQG | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 122546 | 20 | 275/45ZR20 | 110W | 8.5-9.0-10.0 | 10 | 29.76 | 2337 / / | 49 | 500 A A | 35.62 | |
| 115364 | 20 | 275/55R20 | 117V | 6.5-7.5-8.5 | 10 | 31.89 | 2833 / / | 49 | 500 A A | 41.47 | |
| 115357 | 20 | 245/50ZR20 | 102W | 6.5-7.5-8.5 | 10 | 29.69 | 1874 / / | 44 | 500 A A | 31.81 | |
| 122577 | 20 | 255/50ZR20 | 109Y | 6.5-7.5-8.5 | 10 | 30.08 | 2271 / / | 49 | 500 A A | 35.06 | |
| 122638 | 20 | 265/50ZR20 | 111W | 6.5-7.5-8.5 | 10 | 30.47 | 2403 / / | 49 | 500 A A | 36.45 | |
| 115371 | 20 | 275/60R20 | 115V | 6.5-7.5-8.5 | 10 | 32.99 | 2679 / / | 44 | 500 A A | 39.97 |
21"
| ARTICLE | WHEEL DIAMETER | SIZE | LS | PLY RATING | RIM WIDTH | TREAD DEPTH 32nds | DIAMETER | MAX LOAD SINGLE/DUAL |
MAX PRESSURE | UTQG | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 125912 | 21 | 275/45ZR21 | 110W | 9.0-9.5-10.5 | 10 | 30.75 | 2337 / / | 49 | 500 A A | 40.03 | |
| 122553 | 21 | 275/45ZR21 | 110Y | 9.0-9.5-10.5 | 10 | 30.75 | 2337 / / | 49 | 500 A A | 40.03 |
22"
| ARTICLE | WHEEL DIAMETER | SIZE | LS | PLY RATING | RIM WIDTH | TREAD DEPTH 32nds | DIAMETER | MAX LOAD SINGLE/DUAL |
MAX PRESSURE | UTQG | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 115333 | 22 | 285/45R22 | 114V | 8.5-9.0-10.0 | 10 | 32.09 | 2601 / / | 49 | 500 A A | 42.44 | |
| 115340 | 22 | 305/45R22 | 118V | 6.5-7.5-8.5 | 10 | 32.80 | 2910 / / | 49 | 500 A A | 45.68 | |
| 115296 | 22 | 305/40R22 | 114V | 6.5-7.5-8.5 | 10 | 31.61 | 2601 / / | 49 | 500 A A | 41.80 | |
| 115241 | 22 | 265/35ZR22 | 102W | 9.0-9.5-10.5 | 10 | 29.33 | 1874 / / | 49 | 500 A A | 32.63 |
