BATTERY BRAND

BATER

BATER provides traction batteries for forklifts, platform trucks, and industrial motive applications, complying with European standards.

Request Availability
BATER logo
BATER Traction Batteries Hero Banner
⚡ INDUSTRIAL TRACTION BATTERIES

BATER Traction Batteries

Industrial lead-acid traction batteries for forklifts, warehouse equipment and material handling applications.

Request Availability →

Industrial Applications

🚜
Forklift Trucks
📦
Warehouse Equipment
🏭
Manufacturing Facilities
🧹
Cleaning Machines

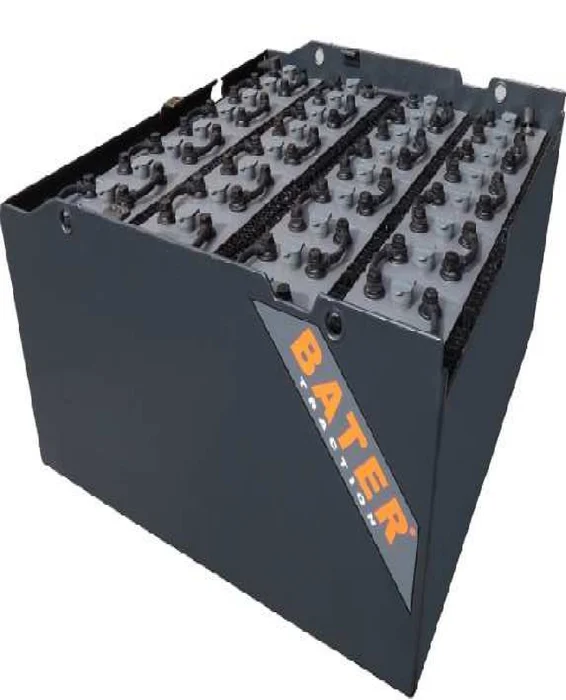

BATER Traction Battery Assembly
BATER Traction Battery Tray & Cell Assembly
Industrial Traction Batteries

BATER Traction Batteries

BATER is a Polish manufacturer of industrial traction batteries designed for forklift trucks, warehouse equipment, cleaning machines, and material handling equipment. The PzS DIN range delivers high cycle consistency of 1,500 cycles at 80% DOD, with capacities from 110 Ah to 1,860 Ah (C5, Ue=1.70V/cell at +30°C). Batteries are built to EN 60254 (IEC 254), DIN 43531, DIN 43535, DIN 43536 standards and are available with optional Battery Filling Systems, Electrolyte Stirring Systems, and level controllers.

Standards & Certifications

  • EN 60254 (IEC 254)
  • DIN 43531
  • DIN 43535
  • DIN 43536
  • DIN 41773
  • DIN 41774
  • ISO 9001
  • ISO 14001

Key Technical Features

  • Capacity range: 110 Ah – 1,860 Ah (C5, Ue=1.70V/cell @ +30°C)
  • Service life: 1,500 cycles at 80% DOD, at 20°C
  • Tubular positive plate (PzS) with die-cast lead spines and acid-permeable tubes
  • Negative plate: lead grid pasted with active material, 6% Sb alloy
  • Separators: Daramic polyethylene, low resistance, microporous

PzS & PzB Cell Technology

BATER PzS and PzB Cell Construction
PzS (DIN) & PzB (BS) Cell Diagram

PzS Cells (DIN Standard)

DIN standard traction cells featuring tubular positive plates with die-cast lead spines (4-6% Sb alloy), wrapped negative plates, and welded PP cell containers. Provides maximum energy density and 1,500 cycle lifespan.

PzB Cells (BS Standard)

British Standard (BS) dimensions designed for specific UK and international equipment footprints, maintaining identical premium materials, robust construction, and cycle durability.

Technical Specifications & Data Tables

90 Cell Models Extracted
# Plate Cell Model Capacity Q5 Length A Width B Height H1 Height H2 Weight Dry Weight Wet Notes
1 A55 2 PzS 110 110 Ah 198 mm 47 mm 315 mm 345 mm 6.5 kg 8.3 kg
2 A55 3 PzS 165 165 Ah 198 mm 65 mm 315 mm 345 mm 9 kg 11.6 kg
3 A55 4 PzS 220 220 Ah 198 mm 83 mm 315 mm 345 mm 11.6 kg 15 kg
4 A55 5 PzS 275 275 Ah 198 mm 101 mm 315 mm 345 mm 14.2 kg 18.3 kg
5 A55 6 PzS 330 330 Ah 198 mm 119 mm 315 mm 345 mm 16.8 kg 21.8 kg
6 A55 7 PzS 385 385 Ah 198 mm 137 mm 315 mm 345 mm 19.4 kg 25.3 kg * 4-pole on request
7 A55 8 PzS 440 440 Ah 198 mm 155 mm 315 mm 345 mm 21.9 kg 28.5 kg * 4-pole on request
8 A55 9 PzS 495 495 Ah 198 mm 173 mm 315 mm 345 mm 24.5 kg 31.7 kg * 4-pole on request
9 A55 10 PzS 550 550 Ah 198 mm 191 mm 315 mm 345 mm 27.1 kg 35.1 kg * 4-pole on request
10 A55 12 PzS 660 660 Ah 198 mm 227 mm 315 mm 345 mm 29.2 kg 36.7 kg 4-pole version
11 A60 2 PzS 120 120 Ah 198 mm 47 mm 340 mm 370 mm 6.8 kg 8.6 kg
12 A60 3 PzS 180 180 Ah 198 mm 65 mm 340 mm 370 mm 9.5 kg 12.2 kg
13 A60 4 PzS 240 240 Ah 198 mm 83 mm 340 mm 370 mm 12.2 kg 15.7 kg
14 A60 5 PzS 300 300 Ah 198 mm 101 mm 340 mm 370 mm 14.9 kg 19.3 kg
15 A60 6 PzS 360 360 Ah 198 mm 119 mm 340 mm 370 mm 17.6 kg 22.8 kg
16 A60 7 PzS 420 420 Ah 198 mm 137 mm 340 mm 370 mm 20.3 kg 26.1 kg * 4-pole on request
17 A60 8 PzS 480 480 Ah 198 mm 155 mm 340 mm 370 mm 23.1 kg 29.7 kg * 4-pole on request
18 A60 9 PzS 540 540 Ah 198 mm 173 mm 340 mm 370 mm 25.8 kg 33.1 kg * 4-pole on request
19 A60 10 PzS 600 600 Ah 198 mm 191 mm 340 mm 370 mm 28.5 kg 37 kg * 4-pole on request
20 A60 12 PzS 720 720 Ah 198 mm 227 mm 340 mm 370 mm 31.68 kg 41.78 kg 4-pole version
21 A80 2 PzS 160 160 Ah 198 mm 47 mm 405 mm 435 mm 8.4 kg 10.5 kg
22 A80 3 PzS 240 240 Ah 198 mm 65 mm 405 mm 435 mm 11.7 kg 14.7 kg
23 A80 4 PzS 320 320 Ah 198 mm 83 mm 405 mm 435 mm 15 kg 19.1 kg
24 A80 5 PzS 400 400 Ah 198 mm 101 mm 405 mm 435 mm 18.4 kg 23.2 kg
25 A80 6 PzS 480 480 Ah 198 mm 119 mm 405 mm 435 mm 21.7 kg 27.6 kg
26 A80 7 PzS 560 560 Ah 198 mm 137 mm 405 mm 435 mm 25.1 kg 31.8 kg * 4-pole on request
27 A80 8 PzS 640 640 Ah 198 mm 155 mm 405 mm 435 mm 28.4 kg 35.8 kg * 4-pole on request
28 A80 9 PzS 720 720 Ah 198 mm 173 mm 405 mm 435 mm 31.8 kg 40.1 kg * 4-pole on request
29 A80 10 PzS 800 800 Ah 198 mm 191 mm 405 mm 435 mm 35.1 kg 44.2 kg * 4-pole on request
30 A80 12 PzS 960 960 Ah 198 mm 227 mm 405 mm 435 mm 39.54 kg 50.34 kg 4-pole version
31 A90 2 PzS 180 180 Ah 198 mm 47 mm 470 mm 500 mm 9.3 kg 12 kg
32 A90 3 PzS 270 270 Ah 198 mm 65 mm 470 mm 500 mm 13 kg 17.1 kg
33 A90 4 PzS 360 360 Ah 198 mm 83 mm 470 mm 500 mm 16.7 kg 21.7 kg
34 A90 5 PzS 450 450 Ah 198 mm 101 mm 470 mm 500 mm 20.4 kg 26.2 kg
35 A90 6 PzS 540 540 Ah 198 mm 119 mm 470 mm 500 mm 24.1 kg 31.2 kg
36 A90 7 PzS 630 630 Ah 198 mm 137 mm 470 mm 500 mm 27.8 kg 36.1 kg * 4-pole on request
37 A90 8 PzS 720 720 Ah 198 mm 155 mm 470 mm 500 mm 31.5 kg 40.8 kg * 4-pole on request
38 A90 9 PzS 810 810 Ah 198 mm 173 mm 470 mm 500 mm 35.2 kg 45.7 kg * 4-pole on request
39 A90 10 PzS 900 900 Ah 198 mm 191 mm 470 mm 500 mm 38.9 kg 50.1 kg * 4-pole on request
40 A90 12 PzS 1080 1080 Ah 198 mm 227 mm 470 mm 500 mm 44.12 kg 56.42 kg 4-pole version
41 A105 2 PzS 210 210 Ah 198 mm 47 mm 511 mm 541 mm 10.8 kg 13.5 kg
42 A105 3 PzS 315 315 Ah 198 mm 65 mm 511 mm 541 mm 15.1 kg 19.2 kg
43 A105 4 PzS 420 420 Ah 198 mm 83 mm 511 mm 541 mm 19.4 kg 24.6 kg
44 A105 5 PzS 525 525 Ah 198 mm 101 mm 511 mm 541 mm 23.7 kg 30.1 kg
45 A105 6 PzS 630 630 Ah 198 mm 119 mm 511 mm 541 mm 28 kg 35.6 kg
46 A105 7 PzS 735 735 Ah 198 mm 137 mm 511 mm 541 mm 32.3 kg 41.1 kg * 4-pole on request
47 A105 8 PzS 840 840 Ah 198 mm 155 mm 511 mm 541 mm 36.6 kg 46.6 kg * 4-pole on request
48 A105 9 PzS 945 945 Ah 198 mm 173 mm 511 mm 541 mm 40.9 kg 52.5 kg * 4-pole on request
49 A105 10 PzS 1050 1050 Ah 198 mm 191 mm 511 mm 541 mm 45.2 kg 57.7 kg
50 A105 12 PzS 1260 1260 Ah 198 mm 227 mm 511 mm 541 mm 50.81 kg 65.01 kg 4-pole version
51 A115 2 PzS 230 230 Ah 198 mm 47 mm 545 mm 575 mm 11.6 kg 14.7 kg
52 A115 3 PzS 345 345 Ah 198 mm 65 mm 545 mm 575 mm 16.2 kg 20.7 kg
53 A115 4 PzS 460 460 Ah 198 mm 83 mm 545 mm 575 mm 20.9 kg 26.7 kg
54 A115 5 PzS 575 575 Ah 198 mm 101 mm 545 mm 575 mm 25.5 kg 32.6 kg
55 A115 6 PzS 690 690 Ah 198 mm 119 mm 545 mm 575 mm 30.1 kg 38.9 kg
56 A115 7 PzS 805 805 Ah 198 mm 137 mm 545 mm 575 mm 34.8 kg 44.5 kg * 4-pole on request
57 A115 8 PzS 920 920 Ah 198 mm 155 mm 545 mm 575 mm 39.4 kg 50.4 kg * 4-pole on request
58 A115 9 PzS 1035 1035 Ah 198 mm 173 mm 545 mm 575 mm 44 kg 56.6 kg * 4-pole on request
59 A115 10 PzS 1150 1150 Ah 198 mm 191 mm 545 mm 575 mm 48.7 kg 62.5 kg * 4-pole on request
60 A115 12 PzS 1380 1380 Ah 198 mm 227 mm 545 mm 575 mm 55.33 kg 68.63 kg 4-pole version
61 A125 2 PzS 250 250 Ah 198 mm 47 mm 570 mm 600 mm 12.5 kg 15.6 kg
62 A125 3 PzS 375 375 Ah 198 mm 65 mm 570 mm 600 mm 17.5 kg 22.3 kg
63 A125 4 PzS 500 500 Ah 198 mm 83 mm 570 mm 600 mm 22.5 kg 28.5 kg
64 A125 5 PzS 625 625 Ah 198 mm 101 mm 570 mm 600 mm 27.5 kg 34.8 kg
65 A125 6 PzS 750 750 Ah 198 mm 119 mm 570 mm 600 mm 32.5 kg 41.5 kg
66 A125 7 PzS 875 875 Ah 198 mm 137 mm 570 mm 600 mm 37.4 kg 47.7 kg * 4-pole on request
67 A125 8 PzS 1000 1000 Ah 198 mm 155 mm 570 mm 600 mm 42.4 kg 54.2 kg * 4-pole on request
68 A125 9 PzS 1125 1125 Ah 198 mm 173 mm 570 mm 600 mm 47.4 kg 60.1 kg * 4-pole on request
69 A125 10 PzS 1250 1250 Ah 198 mm 191 mm 570 mm 600 mm 52.4 kg 66.6 kg * 4-pole on request
70 A125 12 PzS 1500 1500 Ah 198 mm 227 mm 570 mm 600 mm 59.54 kg 75.7 kg 4-pole version
71 A140 2 PzS 280 280 Ah 198 mm 47 mm 685 mm 715 mm 14.8 kg 18.5 kg
72 A140 3 PzS 420 420 Ah 198 mm 65 mm 685 mm 715 mm 20.7 kg 26.3 kg
73 A140 4 PzS 560 560 Ah 198 mm 83 mm 685 mm 715 mm 26.6 kg 34.3 kg
74 A140 5 PzS 700 700 Ah 198 mm 101 mm 685 mm 715 mm 32.5 kg 41.7 kg
75 A140 6 PzS 840 840 Ah 198 mm 119 mm 685 mm 715 mm 38.5 kg 49.2 kg
76 A140 7 PzS 980 980 Ah 198 mm 137 mm 685 mm 715 mm 44.4 kg 56.9 kg * 4-pole on request
77 A140 8 PzS 1120 1120 Ah 198 mm 155 mm 685 mm 715 mm 50.3 kg 64.4 kg * 4-pole on request
78 A140 9 PzS 1260 1260 Ah 198 mm 173 mm 685 mm 715 mm 56.2 kg 71.5 kg * 4-pole on request
79 A140 10 PzS 1400 1400 Ah 198 mm 191 mm 685 mm 715 mm 62.1 kg 80.2 kg * 4-pole on request
80 A140 12 PzS 1680 1680 Ah 198 mm 227 mm 685 mm 715 mm 68.22 kg 87.42 kg 4-pole version
81 A155 2 PzS 310 310 Ah 198 mm 47 mm 720 mm 750 mm 15.2 kg 19.3 kg
82 A155 3 PzS 465 465 Ah 198 mm 65 mm 720 mm 750 mm 21.3 kg 27.6 kg
83 A155 4 PzS 620 620 Ah 198 mm 83 mm 720 mm 750 mm 27.4 kg 35.8 kg
84 A155 5 PzS 775 775 Ah 198 mm 101 mm 720 mm 750 mm 33.5 kg 43.6 kg
85 A155 6 PzS 930 930 Ah 198 mm 119 mm 720 mm 750 mm 39.6 kg 51.5 kg
86 A155 7 PzS 1085 1085 Ah 198 mm 137 mm 720 mm 750 mm 45.7 kg 59.4 kg * 4-pole on request
87 A155 8 PzS 1240 1240 Ah 198 mm 155 mm 720 mm 750 mm 51.8 kg 67.3 kg * 4-pole on request
88 A155 9 PzS 1395 1395 Ah 198 mm 173 mm 720 mm 750 mm 57.9 kg 75.6 kg * 4-pole on request
89 A155 10 PzS 1550 1550 Ah 198 mm 191 mm 720 mm 750 mm 64 kg 83.9 kg * 4-pole on request
90 A155 12 PzS 1860 1860 Ah 198 mm 227 mm 720 mm 750 mm 71.81 kg 91.81 kg 4-pole version
